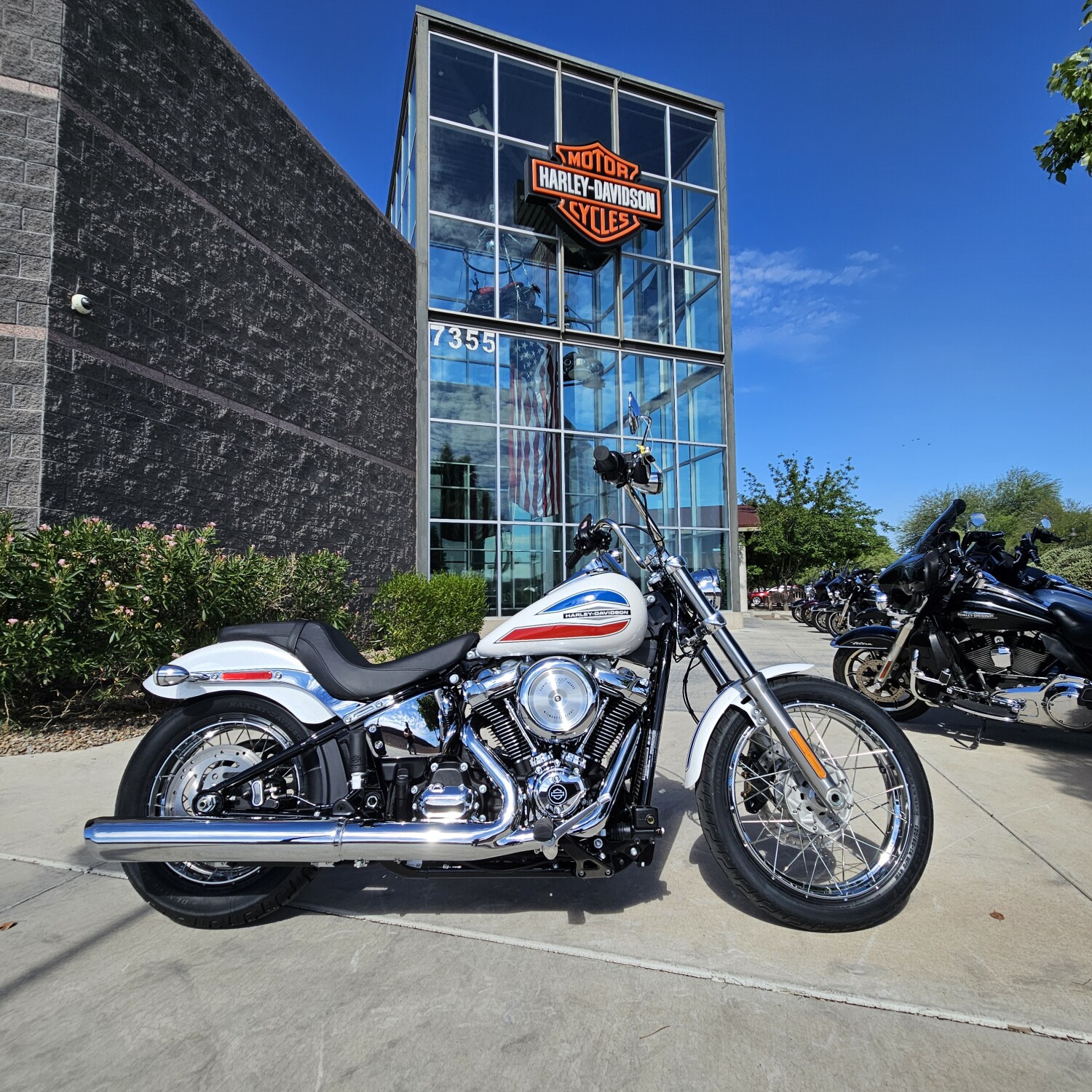

The 2026 Numbered Super Glide is lean by design and loaded up where you need it. With a Milwaukee-Eight 117 motor, torque-tuned 2-into-1 exhaust, stunning pearl paint, USB-C charging, and standard Rider Safety Enhancements, it brings the memories of the factory floor of yesterday into the modern era.

Specifications

Dimensions

add remove
- Length:

  91.3 in
- Overall width:

  36.4 in
- Overall height:

  45.7 in
- Seat height, unladen:

  26.2 in
- Rake (steering head):

  30
- Wheelbase:

  64.2 in
- Tires, front specifications:

  100/90B19,57H,BW
- Tires, rear specifications:

  150/80B16,77H,BW
- Fuel Capacity:

  5.0 gal
- Weight, as shipped:

  627 lbs
- Weight, in running order:

  656 lbs
- Tire, type:

  Dunlop® Harley-Davidson Series, bias blackwall front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117 Classic
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  1923 cc
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  120.2 ft-lb
- Horsepower:

  98 HP / 73 kW @ 4600 rpm
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  47 mpg (5 l/100 km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
- Clutch:

  Mechanical, 10 plate wet, assist & conventional
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; gaiter covers
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment
- Wheels, front type:

  Chrome aluminum tubeless laced wheel
- Wheels, rear type:

  Chrome aluminum tubeless laced wheel
- Brakes, type:

  Solid, uniform expansion rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
