‹ Home › Inventory › FLHX 2023 Street Glide®

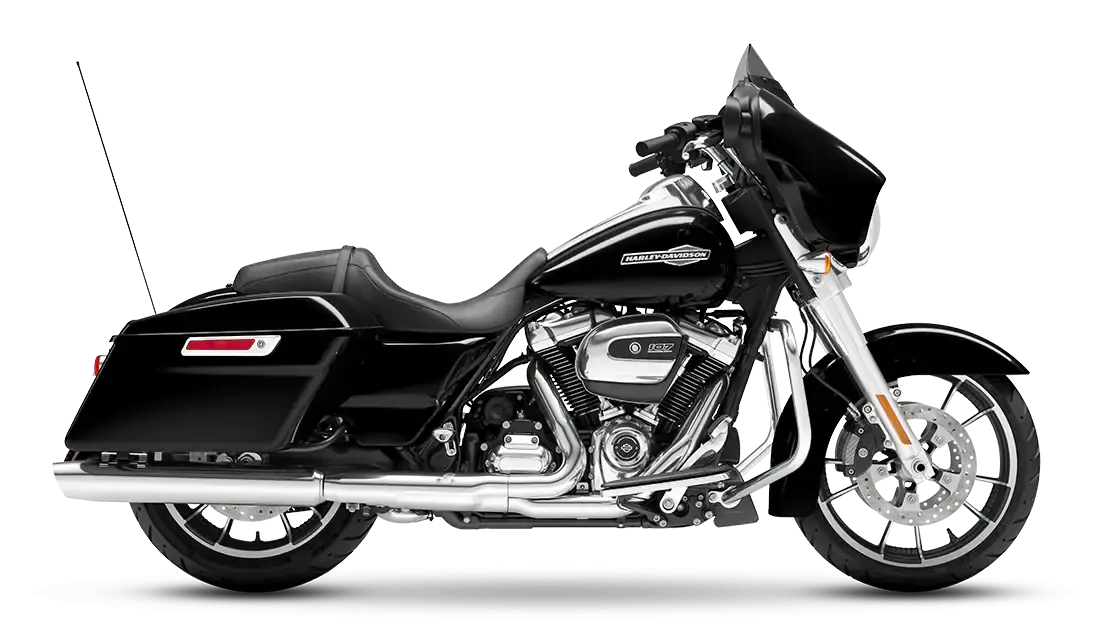

The icon you love to see and love to be seen on. Powered by a Milwaukee-Eight® 107 engine, the Street Glide® lives up to its name with a fully adjustable rear suspension and a responsive front end that let you hum smoothly along rolling highways and winding roads. Its hot-rod bagger style and iconic batwing fairing may have spawned a slew of imitators, but none can put you into the exhilaratingly focused headspace that the original can—especially with the optional Reflex™ Defensive Rider Systems and BOOM!™ Box GTS infotainment system.

Specifications

Dimensions

add remove
- Length:

  96.5 in
- Ground clearance:

  5.3 in
- Rake (steering head):

  26
- Trail:

  6.7 in
- Wheelbase:

  64.0 in
- Tires, front specifications:

  130/60B19 61H
- Tires, rear specifications:

  BW 180/55B18 80H
- Fuel Capacity:

  6.0 gal
- Oil capacity:

  5.2 qt.
- Weight, as shipped:

  796 lbs
- Weight, in running order:

  829 lb
- Luggage capacity – volume:

  2.3 cu ft (0.064 m3)
Engine

add remove
- Engine:

  Milwaukee-Eight® 107
- Bore:

  3.9 in
- Stroke:

  4.4 in
- Displacement:

  106.55 in³
- Compression ratio:

  10.0:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  Chrome, 2-1-2 dual exhaust with tapered mufflers
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  109.2 ft-lb
- Engine torque (RPM):

  3000
- Lean angle, right (deg.):

  31
- Lean angle, left (deg.):

  29
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  42.8 mpg (5.5 l/100km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.593
- Gear ratios (overall) 2nd:

  6.65
- Gear ratios (overall) 3rd:

  4.938
- Gear ratios (overall) 4th:

  4
- Gear ratios (overall) 5th:

  3.407
- Gear Ratios (overall) 6th:

  2.875
Chassis

add remove
- Wheels, front type:

  Enforcer II Cast Aluminum
- Wheels, rear type:

  Enforcer II Cast Aluminum
- Brakes, caliper type:

  32 mm, 4-piston fixed front and rear
Electric

add remove
- Lights (as per country regulation), indicator:

  High beam, running lights, directional lights, low oil pressure, engine diagnostics, neutral, cruise control, speakers, accessory, battery, gear indication, security system, 6-speed, low fuel warning, ABS (if equipped), miles to empty display, fog/aux lam
- Gauges:

  Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
Infotainment

add remove
- Infotainment system:

  Boom!™ Box 4.3
- Type:

  Color
- Watts per channel:

  25
- Speakers:

  2
- Speaker size:

  5.25 inch standard
- Headset specifications (if equipped):

  16-64 ohms
- AM:

  Standard
- FM:

  Standard
- Weather Band (WB):

  Standard
- SD Card, Flash Drive and MP3 — via USB Connection:

  Supported
- Sirius^XM Presets:

  20 - P&A Upgrade for Boom! Box GTS (USA & Canada only)
- Languages:

  English (US/UK)German Spanish (Mexico/Spain)French (Canada/France)Italian Portuguese (Portugal/Brazil)Russian Czech Polish Dutch Turkish Japanese
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Phone dependent
- Vehicle information screen:

  Standard
- USB:

  USB/MTP/iPod/iPhone
- Bluetooth:

  Phone/Media Supported
